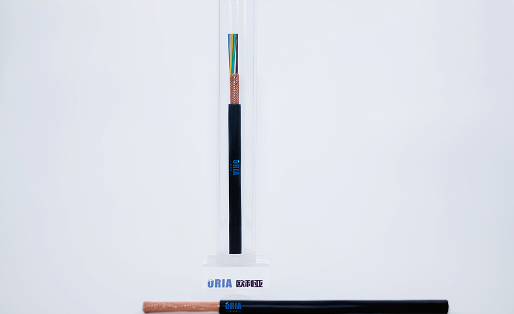

Shielded Flexible Cable RVVP
Product Overview
RVVP shielded flexible cable is a shielded cable specially designed for elevator control systems, featuring excellent electromagnetic interference shielding performance. It is suitable for signal transmission between precision electronic equipment and control systems in elevators, ensuring stable and reliable signal transmission during elevator operation without being affected by external electromagnetic interference.
Product Structure
- Conductor: Multi-strand soft copper wire, compliant with GB/T 3956 standard
- Insulation: High-quality polyvinyl chloride (PVC) insulation layer
- RVVPLift.structure.coreStructureTitle
- RVVPLift.structure.coreStructure1
- RVVPLift.structure.coreStructure2
- Sheath: High-quality PVC jacket, soft and wear-resistant
- Standard: GB/T 5023.3, JB/T 8734
Technical Parameters
- Rated Voltage: U₀/U 300/300V
- RVVPLift.parameters.testVoltage
- Insulation layer ≤ 0.6mm: 1500V
- Insulation layer > 0.6mm: 2000V
- Outer sheath test voltage: 2000V
- RVVPLift.parameters.resistance
- RVVPLift.parameters.attenuation
- RVVPLift.parameters.temperature
- RVVPLift.parameters.bendingRadius
- Fixed installation: 6×D (cable diameter)
- Mobile installation: 10×D (cable diameter)
Product Features
Excellent Shielding Performance
High-density copper wire braided layer effectively shields electromagnetic interference
Stable Signal Transmission
Strong anti-interference capability ensures stable and reliable signal transmission
Soft and Flexible
Made of high-quality materials, suitable for frequent bending applications
Easy Installation
Easy-to-strip design facilitates terminal processing and installation
Application Areas
- Elevator Control Systems: Signal transmission between elevator control cabinets and control devices
- Elevator Monitoring and Detection: Connection of position detection, safety monitoring, speed sensing and other equipment
- Automatic Control Systems: Signal transmission for elevator automatic control systems and intelligent control devices
- Anti-interference Signal Circuits: Critical signal transmission inside elevators requiring electromagnetic interference protection

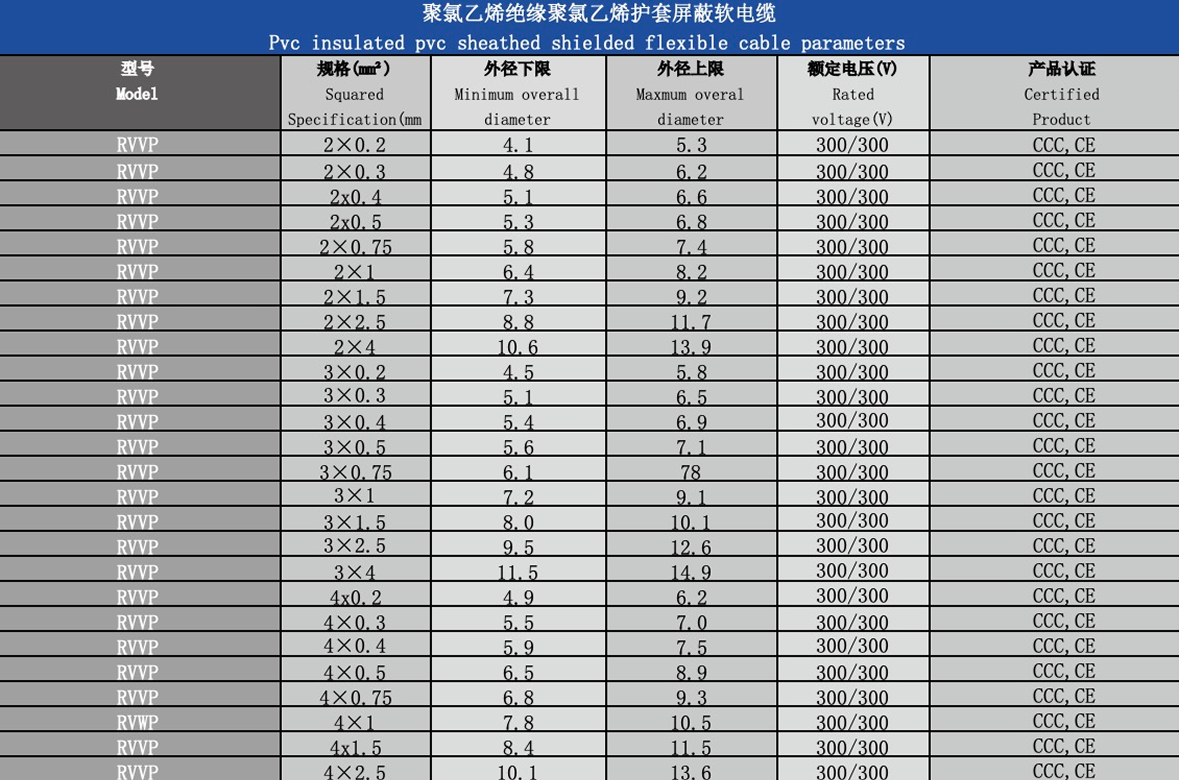

Product Specification Table
Certifications and Standards
National Standard Certification
Complies with GB/T 5023 series standard requirements
International Compatibility
Product design compatible with IEC international standards
Flame Retardant Certification
Passed flame retardant tests, meeting elevator safety requirements
