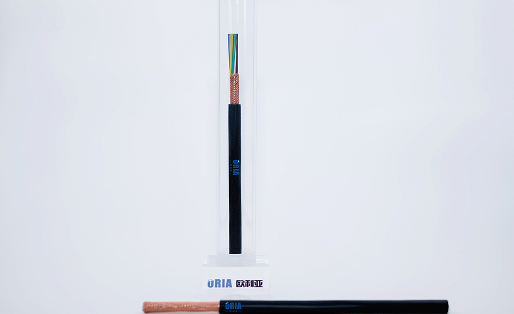

PVC Insulated PVC Sheathed Screened Flexible Cable RVVP
Product Overview
RVVP shielded wire is a type of cable with excellent anti-electronic interference performance, good moisture resistance, and flexibility. It is suitable for communication, automated control, and electrical equipment connections that require shielding from interference.
Product Structure
- •Conductor： Single core or multiple strands of bare copper wire, complying with GB/T 3956 Type 5 or Type 6 stranded conductor standard
- •Insulation： PVC/D type polyvinyl chloride insulation, ensuring excellent electrical performance
- •Core Structure：
- -Filling Design： Can fill gaps between cores, improving cable stability
- -Shielding Layer： The shielding layer won't adhere to the insulated cores during cabling
- •Sheath： PVC/ST5 polyvinyl chloride sheath, enhancing durability and environmental protection capabilities
- •Standard： GB/T 5023, JB/T 8734
Technical Specifications
- •Rated Voltage： U₀/U 300/300V
- •Test Voltage：
- -Insulation layer ≤ 0.6mm： 1500V
- -Insulation layer > 0.6mm： 2000V
- -Outer sheath test voltage： 2000V
- •Minimum Bending Radius：
- -Fixed Installation： 6×D (cable diameter)
- -Mobile Installation： 10×D (cable diameter)
- •Operating Temperature Range：
- -Fixed Installation： -10°C to +70°C
Product Specifications Table
