PVC Insulated Flexible Cable RVV

Product Overview

Applied to power lines, control lines, and signal transmission lines for elevator electrical equipment, meters, electronic devices, and automation devices. Specifically, it can be used for elevator anti-theft alarm systems, building intercom systems, and control installations for instruments, meters, and monitoring systems. Suitable for humid environments, high mechanical protection requirements, and frequent movement and bending.

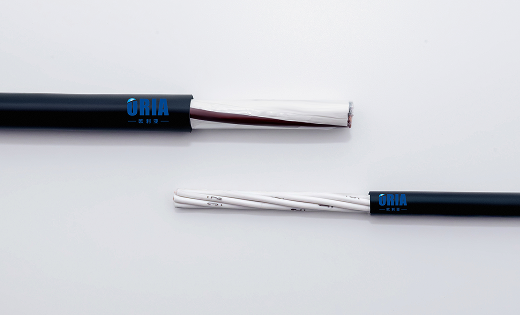

Product Structure

• Conductor: Multiple copper wires stranded together, complying with GB/T 3956 Class 5 or Class 6 stranded conductor standards
• Insulation: PVC/D type polyvinyl chloride insulation, ensuring safety and stability
• Core Structure: Insulated cores are twisted together and arranged in groups
• Sheath: PVC/ST5 special sheath, enhancing wear resistance and external force resistance
• Standards: GB/T 5023, JB/T 8734, EN50525

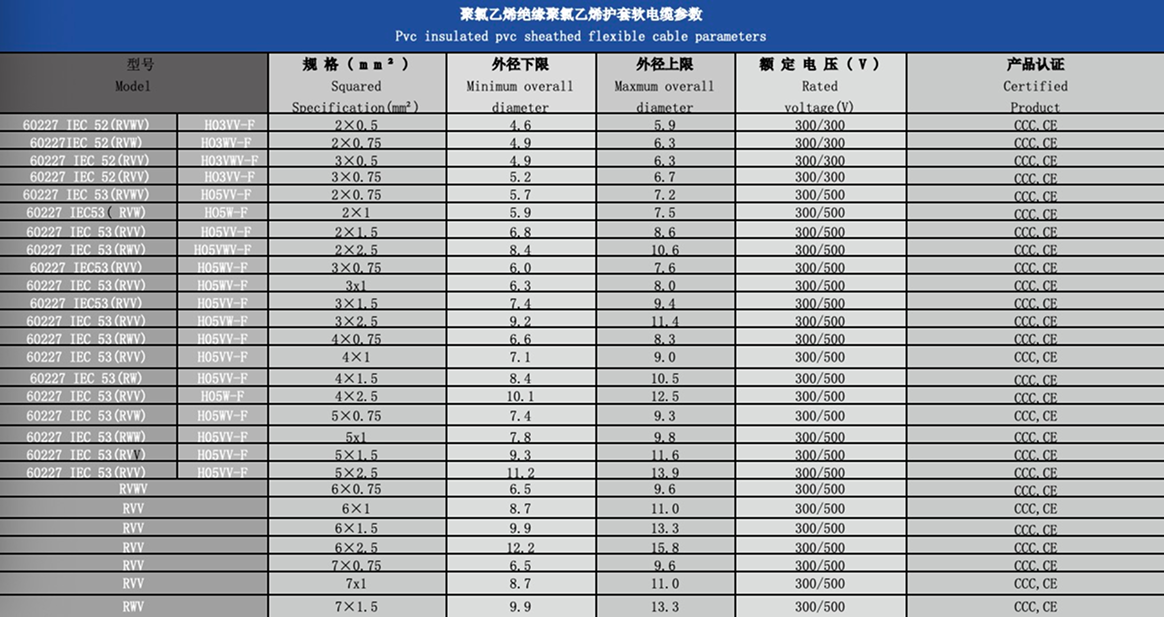

Technical Parameters

• Rated Voltage: U₀/U 300/300V
• Test Voltage:
• Insulation layer ≤ 0.6mm: 1500V
• Insulation layer > 0.6mm: 2000V
• Outer sheath test voltage: 2000V
• Minimum Bending Radius:
• Fixed installation: 6×D (cable diameter)
• Mobile installation: 10×D (cable diameter)
• Operating Temperature Range:
• Fixed installation: -10°C to +70°C
• RVVLift.parameters.temperature2
