PVC Insulated PVC Sheathed Round Elevator Cable RVV
Product Overview
Used for cables, control lines and signal transmission lines for electrical appliances, instruments, electronic equipment and automation devices. Specifically suitable for anti-theft alarm systems, building intercom systems, instruments, meters, monitoring and control installations. Used in damp environments, high mechanical protection requirements, and frequent movement and bending situations.

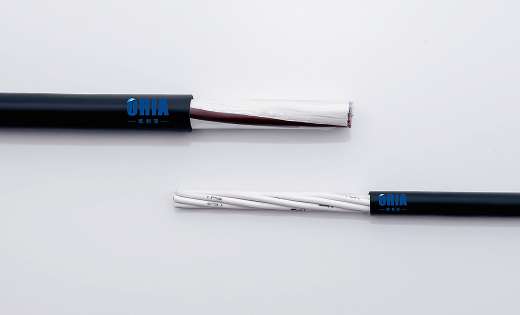

Product Structure
- •Conductor： Multiple strands of bare copper wire or tinned copper wire, complying with GB/T 3956 Type 5 or Type 6 stranded conductor standard
- •Insulation： PVC/D type polyvinyl chloride insulation, ensuring safety and stability
- •Core Structure： Insulated cores twisted together, arranged in groups
- •Sheath： Using PVC/ST5 specialized sheath, enhancing wear resistance and external force resistance
- •Standard： GB/T 5023, JB/T 8734, EN50525
Technical Specifications
- •Rated Voltage： U₀/U 300/500V
- •Test Voltage：
- -Insulation layer ≤ 0.6mm： 1500V
- -Insulation layer > 0.6mm： 2000V
- -Outer sheath test voltage： 2000V
- •Minimum Bending Radius：
- -Fixed Installation： 6×D (cable diameter)
- -Mobile Installation： 8×D (cable diameter)
- •Operating Temperature Range：
- -Fixed Installation： -10°C to +70°C
- -Mobile Installation： -5°C to +70°C

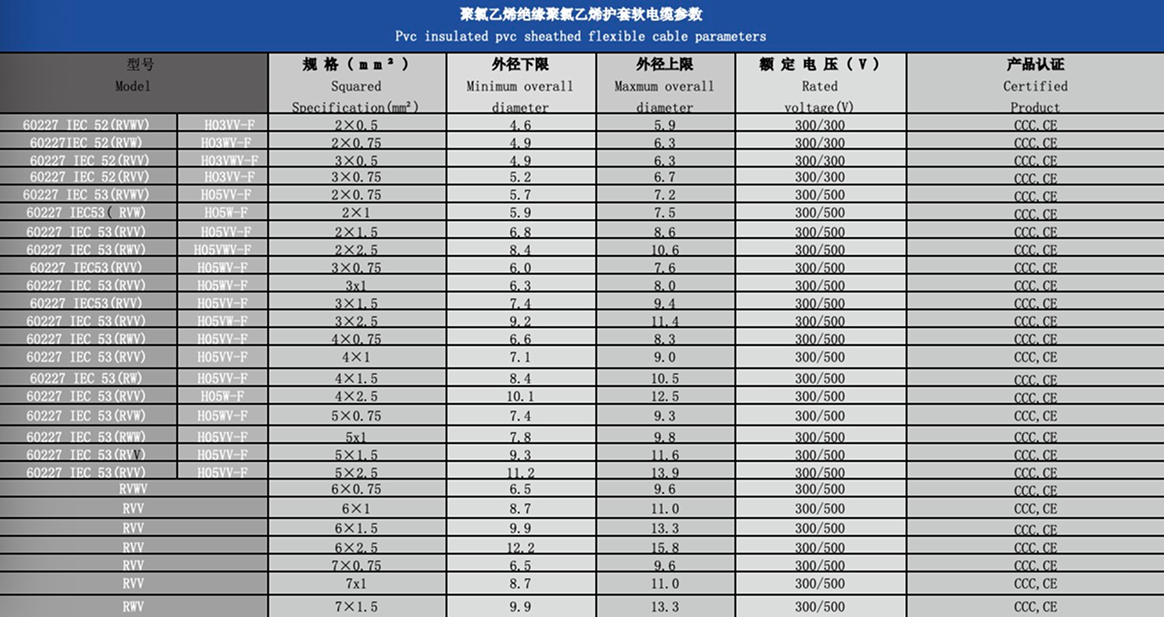

Product Specifications Table
