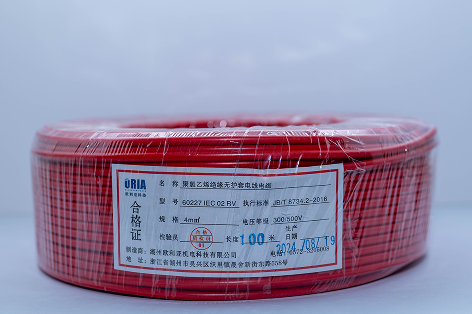

Single Core Flexible Conductor Non-Sheathed Cable RV

📦Product Structure

•Conductor： Multiple strands of bare copper wire or tinned copper wire, complying with GB/T 3956 Type 5 stranded conductor standard
•Insulation： PVC/C type polyvinyl chloride insulation, complying with GB/T 5023.1 and GB/T 8815 standards
•Color： No fixed color spectrum, can be customized according to customer requirements
•Standard： GB/T 5023, Enterprise standard

⭐Product Features

✓High Flexibility： Multi-stranded conductor, excellent bending performance, suitable for complex wiring
✓Excellent Temperature Resistance： Long-term allowable working temperature ≤ 70°C, ensuring stable cable operation
✓Outstanding Mechanical Properties： High insulation strength, tensile and wear resistance, safer to use
✓Easy Installation： Standard insulation thickness, easy to cut and strip, improving installation efficiency
✓Bright Colors： Clear markings, easy to identify

⚙️Technical Specifications

▶Rated Voltage： U₀/U 300/500V, 450/750V
▶Test Voltage： 2000V
▶Minimum Bending Radius：
- •Fixed Installation： 4×D (cable diameter)
- •Mobile Installation： 6×D (cable diameter)

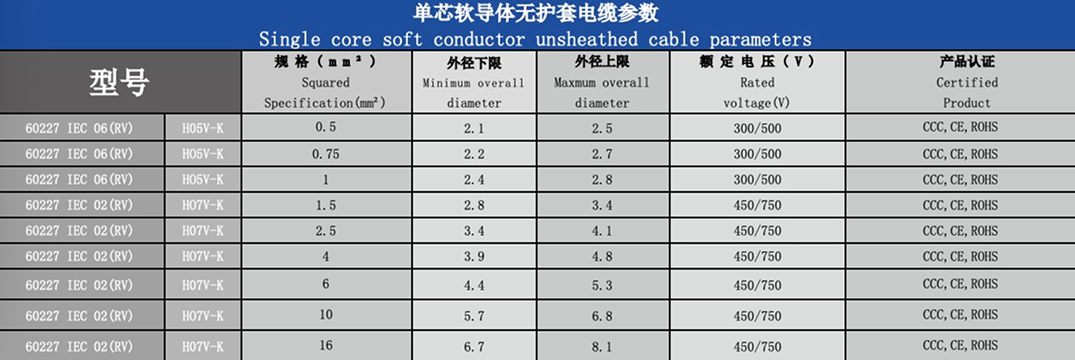

Single Core Flexible Conductor Non-Sheathed Cable Parameters
