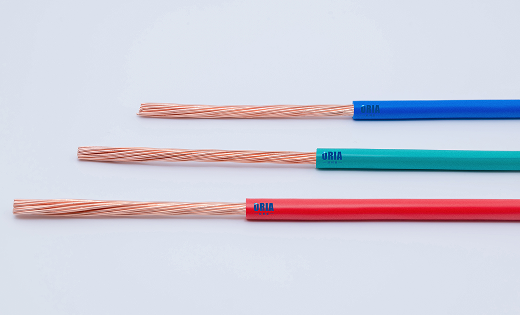

Single Core Flexible Conductor Non-Sheathed Cable BVR
📦Product Structure
- •Conductor： Single core or bare copper wire stranded conductor, complying with GB/T 3956 Type 2 stranded conductor standard
- •Insulation： PVC/C type polyvinyl chloride insulation, complying with GB/T 5023.1 and GB/T 8815 standards
- •Color： No fixed color spectrum, can be customized according to customer requirements
- •Standard： JB/T 8734
⭐Product Features
- ✓Flexibility： Compared to BV cables, more flexible and suitable for wiring installation
- ✓Temperature Resistance： Long-term allowable working temperature ≤ 70°C, ensuring stable cable performance
- ✓Excellent Mechanical Properties： High insulation strength, tensile and wear resistance, safe to use
- ✓Easy Installation： Standard insulation thickness, easy to cut and strip, convenient for wiring
⚙️Technical Specifications
- ▶Rated Voltage： U₀/U 450/750V
- ▶Test Voltage： 2500V
- ▶Minimum Bending Radius (Fixed Installation)： 6×D (cable diameter)
- ▶Operating Temperature Range (Fixed Installation)： -10°C to +70°C

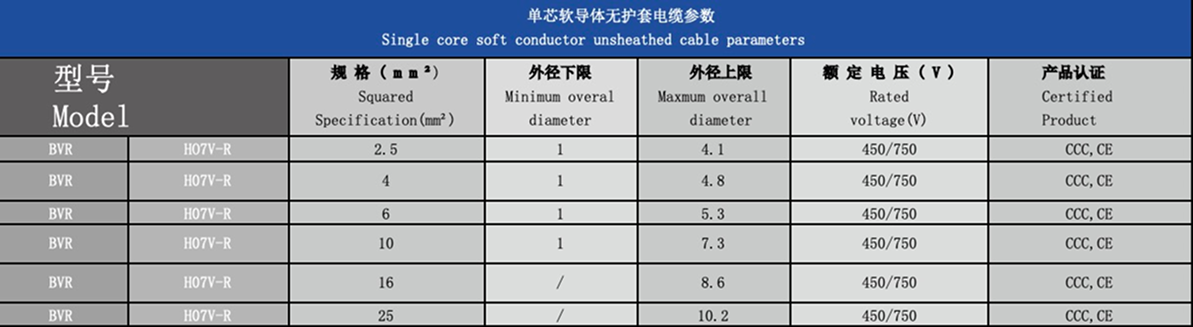

Single Core Flexible Conductor Non-Sheathed Cable Parameters
