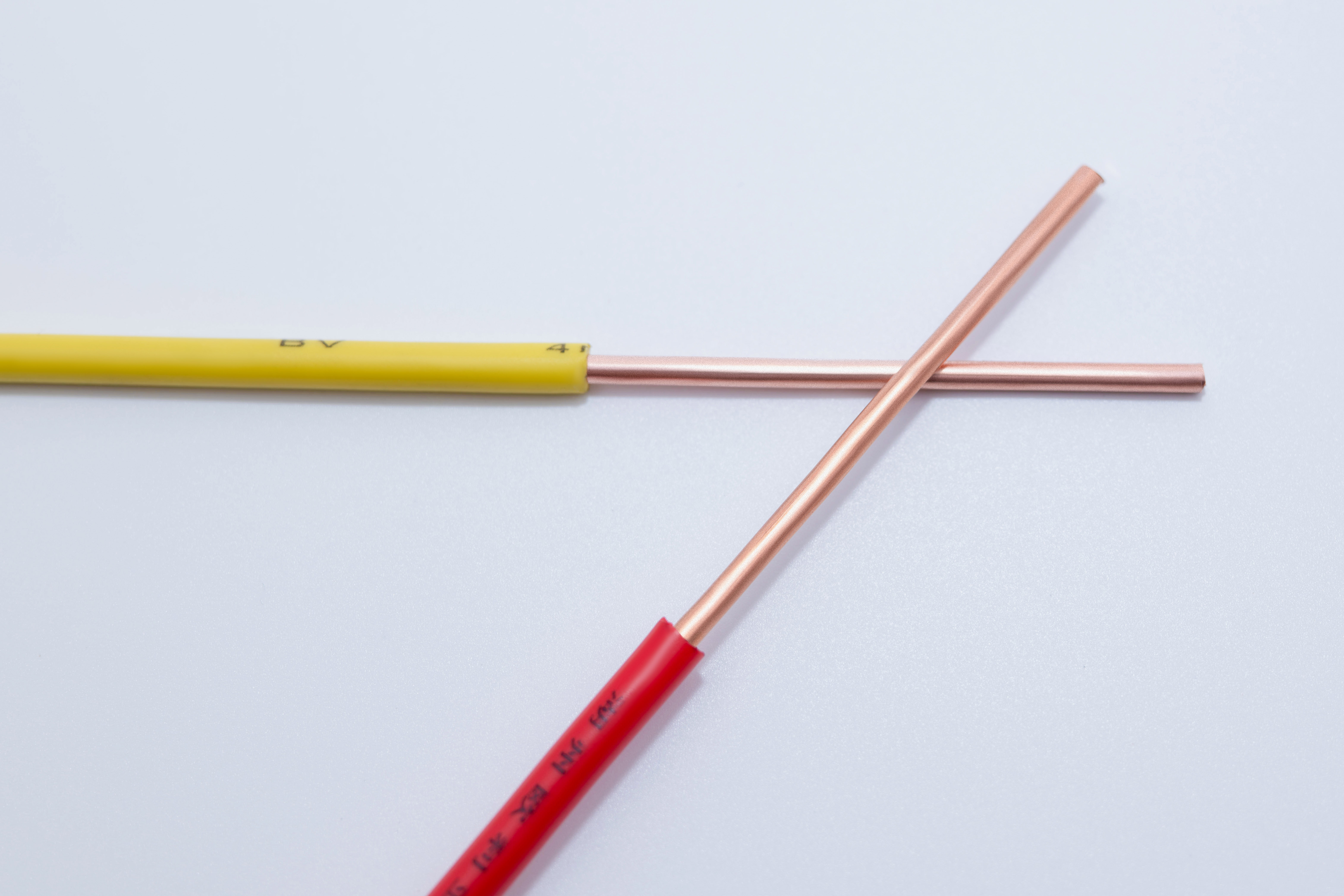

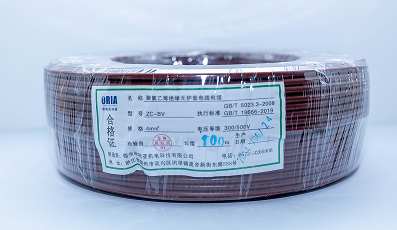

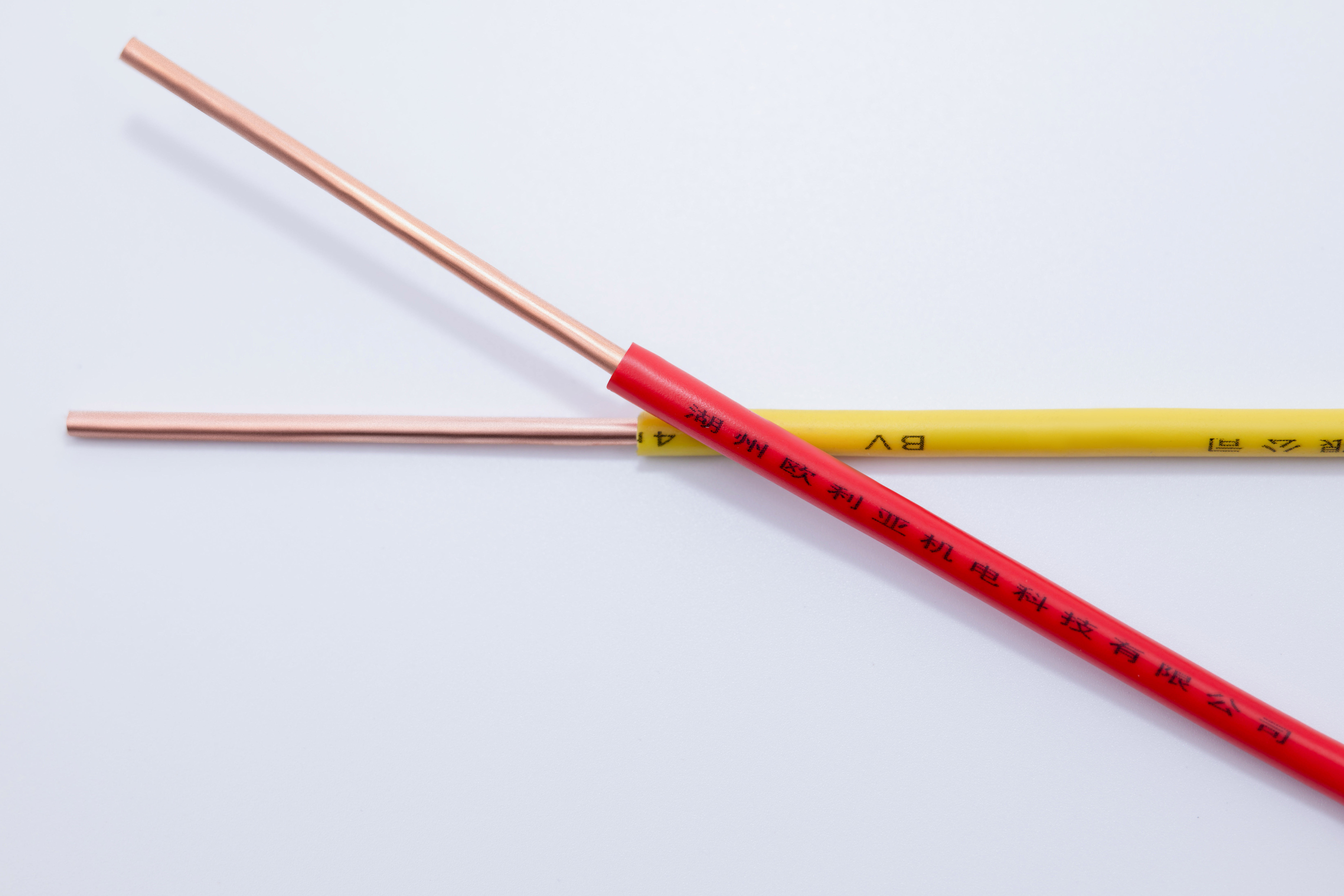

Single Core Solid Conductor Non-Sheathed Cable BV

Hard wire, copper core PVC insulated cables, suitable for fixed wiring with rated voltage of 450/750V and below.

⭐Product Features

✓Stable Structure： Single core or bare copper wire stranded conductor, complying with GB/T 3956 Type 1 or Type 2 stranded conductor standard
✓Reliable Insulation： Using PVC/C type polyvinyl chloride insulation, complying with GB/T 5023.1 and GB/T 8815 standards
✓Various Colors： No fixed color spectrum, can be customized according to customer requirements
✓Temperature Resistance： Long-term allowable working temperature ≤ 70°C, excellent insulation mechanical properties, safe and reliable
✓Easy Installation： Standard insulation thickness, easy to cut and strip

⚙️Technical Specifications

▶Standard： GB/T 5023
▶Rated Voltage： U₀/U 450/750V
▶Test Voltage： 2500V
▶Minimum Bending Radius： 6×D (cable diameter)
▶Operating Temperature Range： -10°C to +70°C

Product Details
